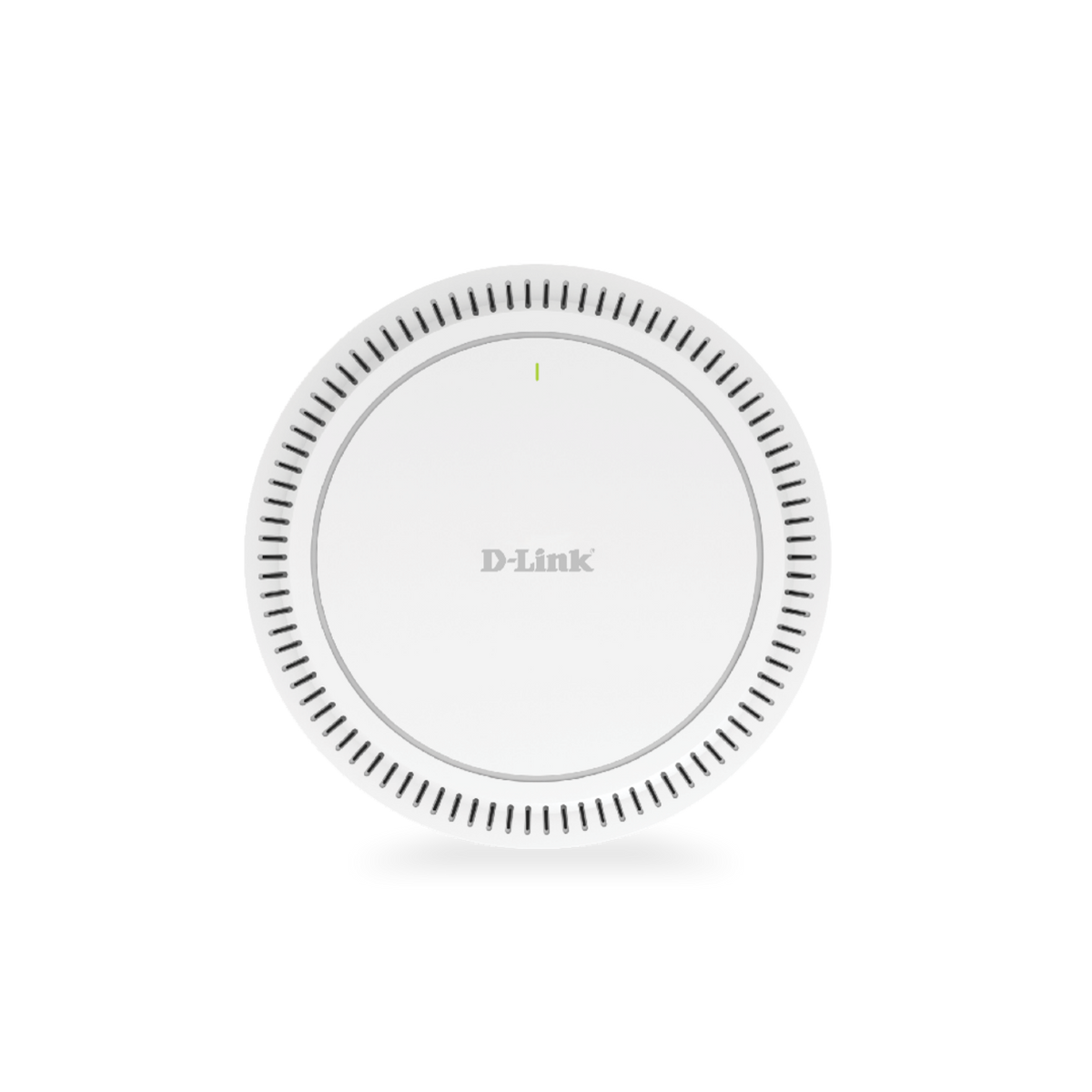

D-Lite Cloud-Managed BE3600 Wi-Fi 7 Ceiling Access Point (QCA)

D-Lite Cloud-Managed BE3600 Wi-Fi 7 Ceiling Access Point (QCA)

SKU

Ultra-Fast BE3600 Wi-Fi 7 Performance

  • Up to 688.5Mbps on 2.4GHz (2T2R) and 2882.5Mbps on 5.8GHz (2T2R). Supports 4096-QAM, MLO and MU-MIMO for low-latency multi-device handling in dense environments.

Dual-Band High-Gain Antennas

  • 2 internal 5dBi 2.4GHz + 2 internal 5dBi 5.8GHz antennas with Beamforming, reducing dead zones and ensuring stable signals through obstacles.

2.5G Ports with PoE Support

  • 2 x 2.5G RJ45 ports (LAN1 with PoE), enabling data transmission and power supply via a single cable for flexible deployment.

Remote Platform Management

  • Supports Web GUI, Telnet, APP, SSH, HTTP/HTTPS. Features QoS, firewall, filtering, VPN, user isolation, guest SSIDs, parental controls, and defense against DoS/ARP attacks for secure and stable network. 2.5G Ports with PoE Support

Comprehensive Management & Security

  • Dual-Band High-Gain Antennas - 2 internal 5dBi 2.4GHz + 2 internal 5dBi 5.8GHz antennas with Beamforming, reducing dead zones and ensuring stable signals through obstacles

Pairs well with

Ships within 1-2 business days for in-stock items

Complimentary shipping above $80

* Warranty Details
Downloads Datasheets

Tech Specifications

Hardware
Chipset
  • IPQ5332+QCN6432
CPU Frequency
  • Quad-core Cortex A53 @ 1.5 GHz
Memory
  • 1GB DDR4
Flash
  • 256MB Nand Flash
Device Interfaces
  • 1 x RJ45 10M/100M/1000M/2.5G LAN1 Ethernet(with PoE IN)
  • 1 x RJ45 10M/100M/1000M/2.5G LAN2 Ethernet
  • 1 x Reset Button
  • 1 x Power Jack
Wireless
Wireless
Standard
  • 802.11a/b/g/n/ac/ax/be
  • 802.11b/g/n/ax/be, frequency 2.400 GHz to 2.4835 GHz
  • 802.11a/n/ac/ax/be, frequency 5.150GHz to 5.350GHz && 5.470GHz to 5.725GHz && 5.725GHz to 5.850 GHz
  • 802.11be ,country-specific restrictions apply
  • Korea、Japan、ETSI、FCC channels can be selected
Modulation Schemes
  • OFDM - BPSK,QPSK, 16-QAM, 64-QAM 256-QAM 1024-QAM 4096-QAM
  • DSSS - DBPSK, DQPSK, CCK
