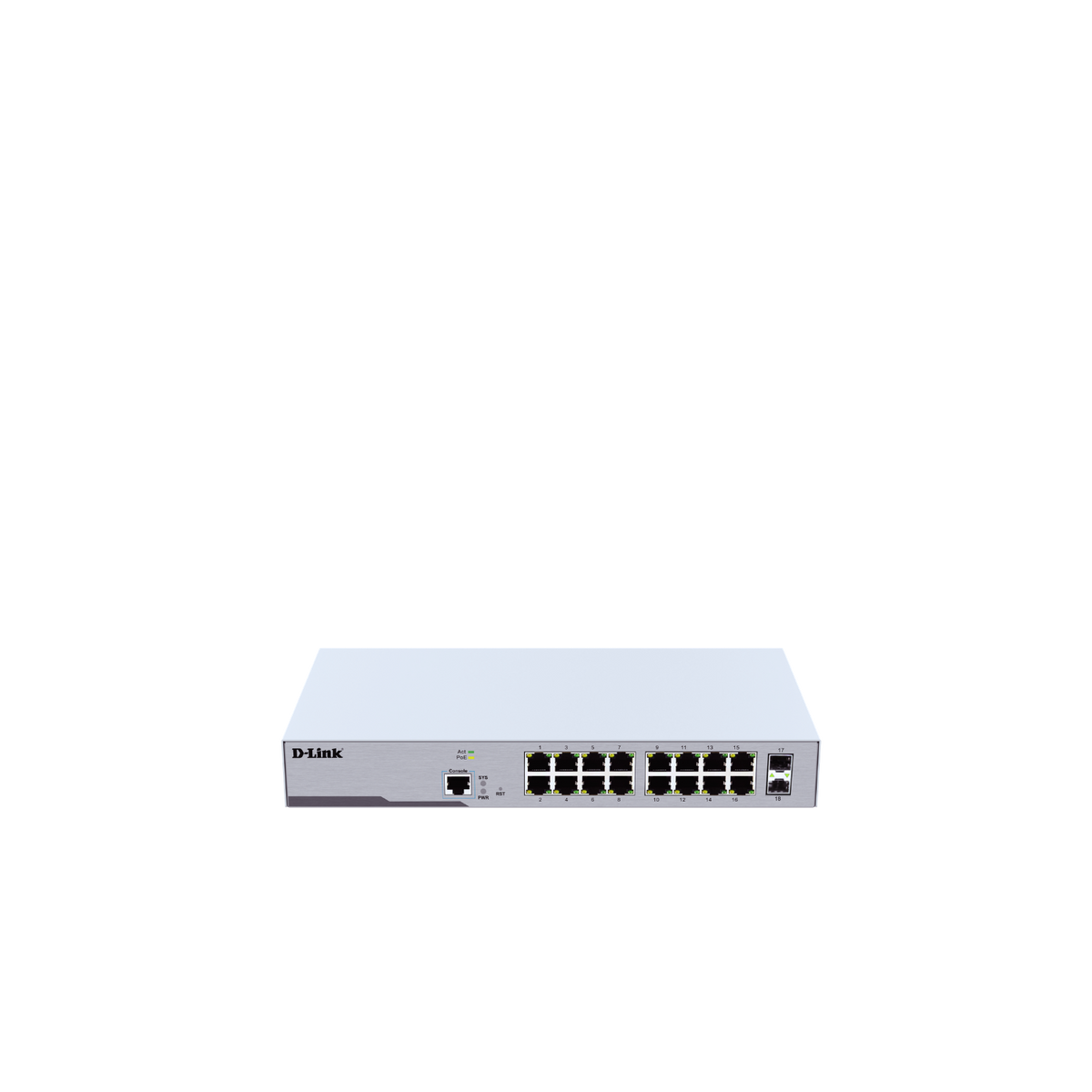

18-Port Layer 2 Gigabit Cloud Managed PoE Switch

18-Port Layer 2 Gigabit Cloud Managed PoE Switch

SKU
  • Gigabit High-Speed Networking
    - Gigabit ports allow you to connect up 16 devices for fast file transfers and smooth media streaming
    - Two (2) SFP uplink ports allow for additional connections to storage or an uplink network
  • Power Your Devices
    - Supports IEEE 802.3af/at PoE to Power PoE capable Network devices via ethernet cables without need for power adapters.
  • Flow Control Easy to Use
    - Plug and play installation
    - IEEE 802.3x Flow Control
    - Auto MDI/MDIX crossover for all ports
  • Eco-friendly and Economical
    - Low-cost, innovative design runs reliably and quietly, saving energy and cutting costs without sacrificing performance.
  • Advanced Management
    - Web GUI : Intuitive browser-based configuration for quick setup.
    - CLI (Command Line Interface): Advanced control via Telnet/SSH for IT professionals.
    - Remote access and centralized management from anywhere.

Pairs well with

Ships within 1-2 business days for in-stock items

Complimentary shipping above $80

* Warranty Details
Downloads Datasheets

Tech Specifications

Hardware
Network Interface
  • 16 x 10/100/1000 Mbps PoE Ports (Port 1~16)
  • 1 x 1000 Mbps RJ-45 Port
  • 2 x Gigabit SFP Ports
Management Port

• RJ-45 Port

Transmission Rate
  • 10/100/1000Mbps
  • Supports Auto MDI/MDIX and Auto-Negotiation
  • Supports 10BASE-T, 100BASE-TX, 1000BASE-T Ethernet
Standards

• IEEE802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE802.3ab 1000 BASE-T
• IEEE802.3z 1000 BASE-X
• ANSI/IEEE 802.3: Auto-Negotiation
• IEEE802.3x Flow Control

PoE Protocol

• IEEE802.3af (Up to 15.4 W)
• IEEE802.3at (Up to 30 W)

General
Switching Capacity

• 36 Gbps

Packet Forwarding

• 26.79 Mpps

CPU Memory
  • DDR3 128 MB
Flash Memory

• 32 MB

PoE Ports

• Ports 1–16 Support PoE Output (IEEE 802.3af/at, Up to 30 W per Port)

Power Budget

• 350W

Physical
LED Indicators

• Per Port: Link/ACT, PoEPer Device: Power, SYS, RST

Dimensions

• 320 × 180 × 44 mm

Housing
  • Metal
Power Input

• AC 100-160 V, 50/60 HZ

Fan

• (One)1

Operating Temperature

• 0 to 40°C (32 to 104°F)

Storage Temperature

• -10 to 70°C (14 to 158°F)

Operating Humidity

• 10% to 90% (Non-Condensing)

Storage Humidity

• 5% to 95% (Non-Condensing)

Lightning Protection

• 6Kv

Certifications

• CE
